Vertical Form Fill & Seal Tooling

 VFFS TOOLING

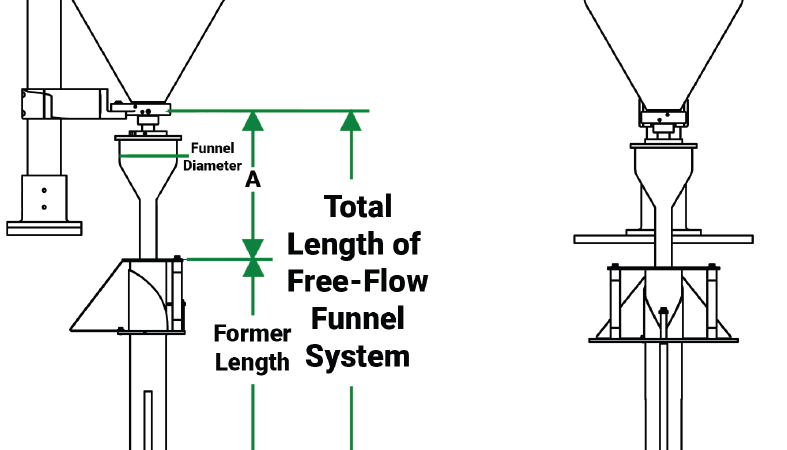

In addition to the supply of augers, funnels, and other accessories; Auger Fabrication can supply complete auger filling assemblies for use with vertical form-fill and seal (VFFS) equipment. Auger Fabrication’s extensive experience in this field can accommodate all types and configurations of VFFS machines. Use this page to specify an auger filling assembly for your equipment. Additional details or other, special requirements can be sketched on the worksheet at the end of this catalog.







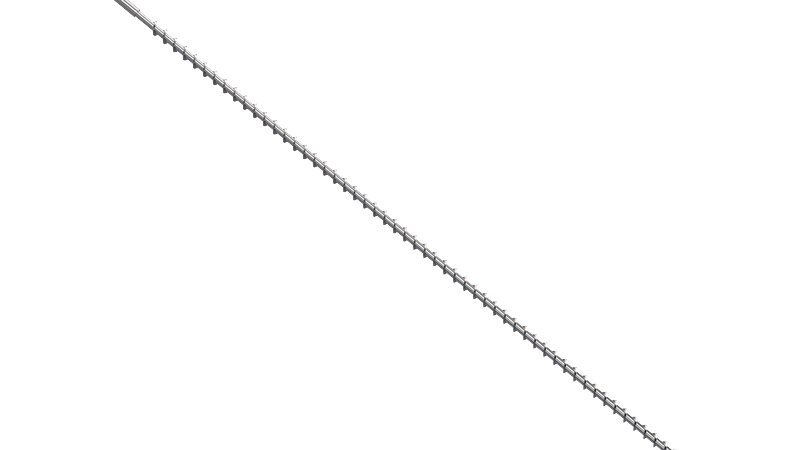

STICK PACK TOOLING

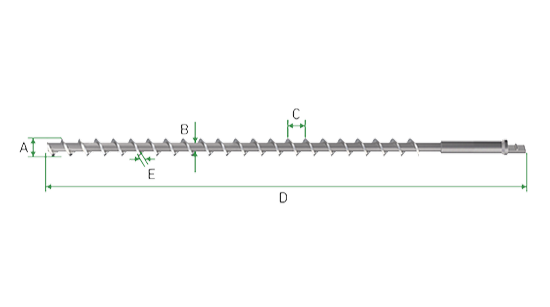

REQUIRED DIMENSIONS

  • A. Outside Diameter

  • B. Rod Diameter

  • C. Pitch

  • D. Total Auger Length

  • E. Flight Thickness

Stick pack tooling is an essential component for companies looking to optimize their packaging processes for powdered or granular products. At Auger Fabrication, we offer precision-engineered stick pack tooling that guarantees consistent, efficient, and high-quality packaging. Our tooling solutions are designed to fit seamlessly with your existing machinery, ensuring minimal downtime and maximum productivity. Whether you are packaging food products, pharmaceuticals, or other fine materials, our stick pack tooling provides the reliability and accuracy you need. By choosing Auger Fabrication, you are investing in a supplier that enhances your operational efficiency and ensures your products are packaged to the highest standards.

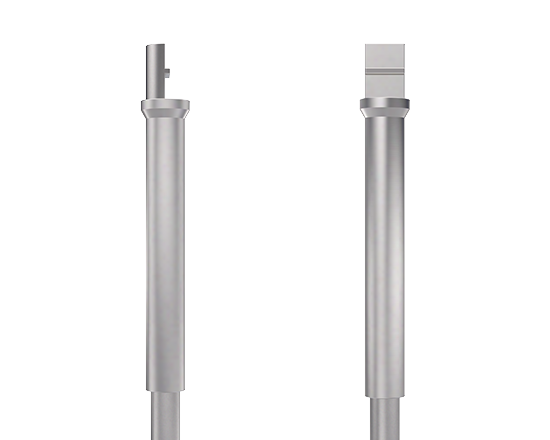

STICK PACK AUGER STEMS

The most common stick pack tooling stem styles are Style A and Style B.  Both styles are essential in the realm of stick pack tooling, offering versatility and adaptability to meet various operational demands. By understanding the specific needs of your packaging process, you can choose the appropriate stem style to optimize efficiency and performance.

STEM STYLE A

Style A stems are widely used for simplicity and efficiency in various applications. When ordering or manufacturing these stems, the stem length and stem diameter are sufficient measurements.

STEM STYLE B

Style B stems are more complex than Style A, resembling the "Double Key" style used in other vertical auger setups. They offer enhanced functionality for specific packaging needs.

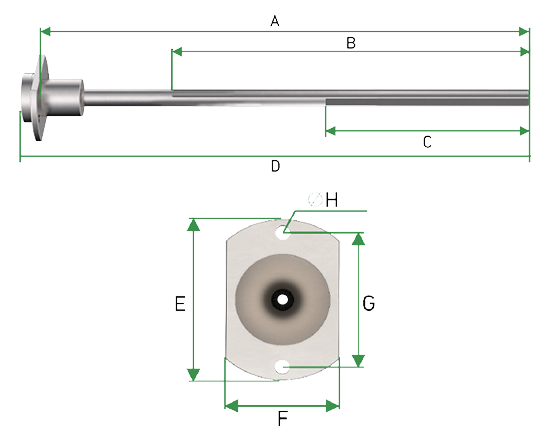

FUNNEL MEASUREMENTS

Stick pack funnels are long and thin, offering several unique features that are not typically found in free-flow or non-free flow tooling sets.

  • A. Tube Cut Length
  • B. Air Purge Length
  • C. Flat Length
  • D. Total Funnel Length
  • E. HUD Length
  • F. HUD Height
  • G. HUD Hole Distance
  • H. HUD Hole Diameter
